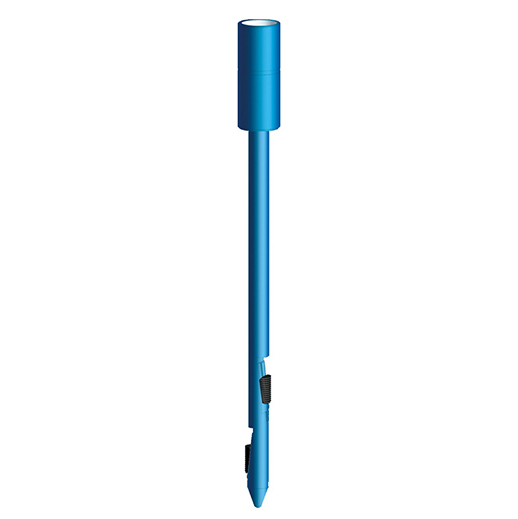

HLM-SS type fishing spear is an internal fishing tool used for fishing fallen s that are generally used in oil perforation process, such as drill pipe, tubing, wash pipe, liner, packer, water distributor, etc. It can also be used for the reversing of stuck fallen s and it can be used in conjunction with other tools such as jar and back-off tool.
| Specifications - Sliding Block Spear | ||||||||
| Model | Product Code | O.D. (mm) | Connection (Box) | LD. (mm) | Dia. of »pear rod (mm) | LD. of fifth (mm) | O.D. o<n«h (in) | Length (mm) |
| HLM-SS60 | L12-4600 | 121 | NC38 | 12(Side bore) | 46 | 49.66 | 2 3/8 | 1200 |
| L12-4700 | 79 | 2 3/8 REG | 12(Side bore) | 47 | 50.7 | 1000 | ||
| HLM-SS73 | L12-5100 | 105 | NC31 | 12(Side bore) | 51 | 54.6 | 2 7/8 | 1200 |
| L12-5500 | 79 | 2 3/8 REG | 12(S»de bore) | 55 | 62 | 1200 | ||
| L12-5700 | 121 | NC38 | 12(Side bore) | 57 | 62 | 1200 | ||
| HLM-SS89 | L12-6500 | 121 | NC38 | 15(Side bore) | 65 | 70.2 | 31/2 | 1200 |
| L12-7000 | 121 | NC38 | 15(Side bore) | 70 | 76.2 | 1200 | ||
| HLM-SS114 | L12-8600 | 122 | NC31 | 18(Side bore) | 86 | 90-95 | 4 1/2 | 1200 |
| L12-8800 | 168 | NC50 | 18(Side bore) | 88 | 92.5-97.2 | 1200 | ||
| L12-9100 | 122 | NC31 | 18(Side bore) | 91 | 97.2-103.9 | 1200 | ||
| HLM-SS127 | L12-9700 | 168 | NC50 | 18 | 97 | 101.6-116 | 5 | 1200 |
| HLM-SS140 | L12-10800 | 141 | NC31 | 18 | 108 | 114.3-121.4 | 51/2 | 1200 |
| L12-11200 | 168 | NC38 | 20 | 112 | 118.6-124.3 | 1265 | ||
| note: Unless required specially, the length is 1200mm. | ||||||||
