Wellhead Control Panels (WHCP)

Reference Standards of Wellhead Control Panels (WHCP):

·APISPEC6A            ·APISPEC14A            ·APISPEC14D
·APIRP14B               ·APIRP14C                 ·APIRP500
·APIRP55                 ·IEC60529                   ·IEC60079
·SY/T0310                ·ASME VIII                  ·ASMEB 31.3

Options of Wellhead Control Panels (WHCP):

• Pressure Data Acquisition:

      The explosion-proof transmitters are used for pressure data collecting & monitoring to hydraulic control loops, casing /oil pipes and other process pipelines.

• Temperature Data Acquisition:

       The explosion-proof transmitters are used for temp data collecting & monitoring to casing/oil pipes and other process pipelines.

• H2S Detecting:

       The H2S detecting instruments are employed for the gas density detection and raising the alarm to well fields & panel internal space.

• Combustible Gases Detecting:

       The gases detector is employed for the gas density detection and raising the alarm to well fields & panel internal space.

• RTU:

      Used for various signals' data collecting and transmitting to such as pressure, liquid level, temperature, flow rate and valve positions of control panels and well fields.

• Solar Power System:

      Served as power source for various electrical instruments and components;

• N2 Supply:

      Mainly served as backup gas source for control panels, such as the driving gasforair-operated pumps and recharging of accumulators.

Technical data of Wellhead Control Panels (WHCP):

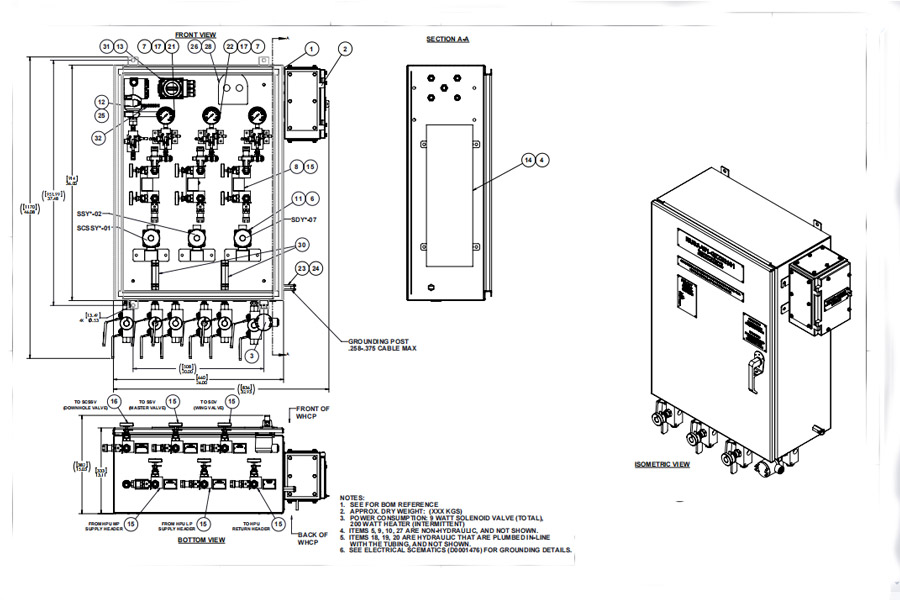

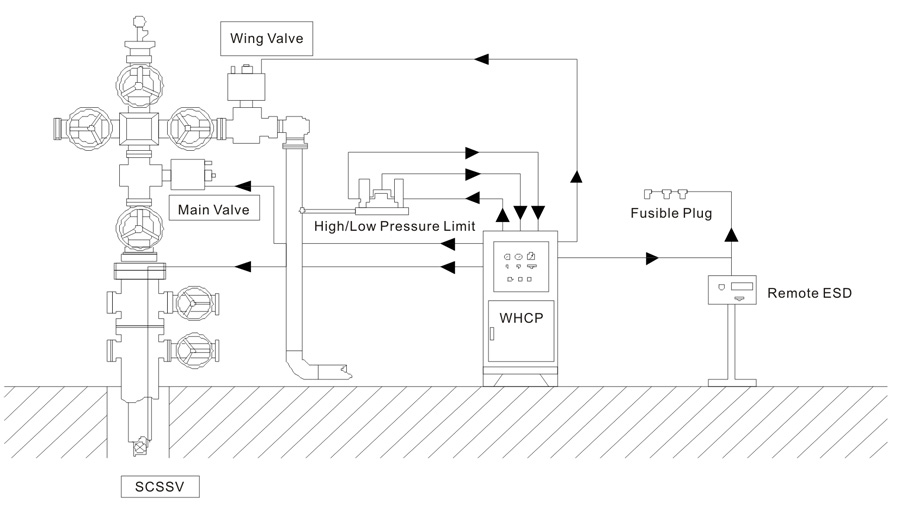

• Wellhead controlling: Single Well/Multi-well control

• Control valves: SCSSV, SSV, or other Hydraulic/Pneumatic Valves

• Output pressure range: 0~15,000psi

• Environment temp: -40~60 ℃

• Fusible plug melting temp: 160℉(71℃), 212℉(100℃),255℉(124℃),281℉(138℃)


• Explosion-proof grade: Exd II BT4


• Protection grade: IP65


• Panel material: 316SS
